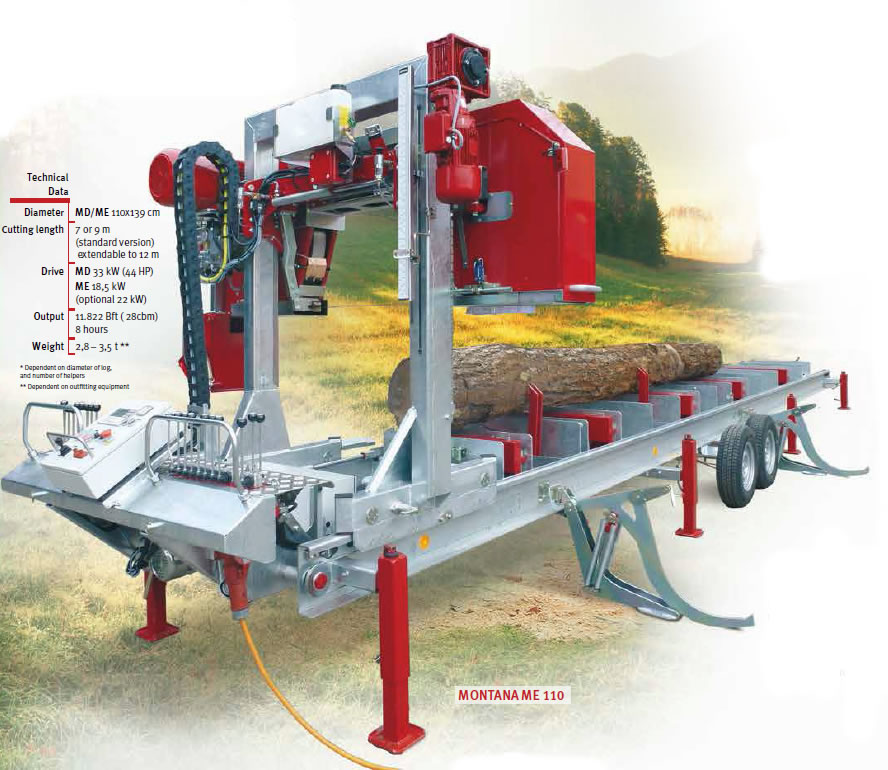

SERRA Portable Sawmills - Montana ME/MD 110

New larger version of the successful Montana ME/MD 90

The larger saw head can process logs with a diameter of 4 ft 7" (110 mm).

A high degree of cutting precision with angled cuts and saw blades, now at width of 4 inches. And of course with a completely galvanised frame for long-term value retention.

New frame

One of a kind base frame concept

Small gaps only between log supports, which means boards will not sag when cutting and short logs from 24" long (60 cm), can be placed and sawn.

All supports have the same hole pattern for the installation of hydraulic components, meaning they can be easily moved and retrofitted.

The entire frame is galvanized. The zinc coat prevents blue coloration of acidic wood types and also provides best rust protection.

Squaring arms

No compromise for the squaring arms

Compared to the smaller Montana, this bigger model has vertically extending squaring arms. Extending and retracting is also possible when branches stick out from the log. The squaring arms are easier to lower when cutting strips.

Quality engines

Electric (at left): Saw unit drive 18.5 kW, can be upgraded to 22 kW

Diesel engine: 1.5 litres, water-cooled 4-cylinder diesel engine with turbo from Kubota. Power: 33 kW (44 HP). The feed motor with frequency converter can be precisely and continuously controlled with a small control lever. Power train with feed cables on both sides (ME/MD 90 one side only).

The height adjusting motor (two-stage for electric version, variable for diesel) is equipped with a brake to guarantee 100% accurate saw operation.

Saw head precision

Heavy iron-cast, precision camber machined band wheels with 31-1/2" (800 mm) diameter guarantee a smooth operation.

Angled cut of the saw blade.

Upwards-shifted hydraulic blade tension provides the saw blade a full 20" (50 cm) of space for the slab cuttings.

Uppermost cut 35" (87 cm" above the saw bed.

Automatic saw blade lubrication.

Blade guide can be moved hydraulically as a standard feature. Pre-cutter for increased saw blade service life.

Technical data
Log diameter	43 - 54" (110x139 cm)
Cutting length	23 ft or 29½ ft (7 or 9 m) standard, extendable to 39 ft (12 m) as an option
Drive	MD-110: Diesel engine -1.5L Kubota, 33 kW (44.2 HP)
or	ME-110: Electric motor 18.5 kW (optional 22 kW)
Production output	11,822 Bft (28 m3) / 8 hours depending on diameter of log and number of helpers
Weight	6173 - 7716 lbs (2.8 - 3.5 t) depending on accessories
