AVOLA 65 K Cross-cut and compound miter bench saw

The modular GAMA system for your individual woodworking needs

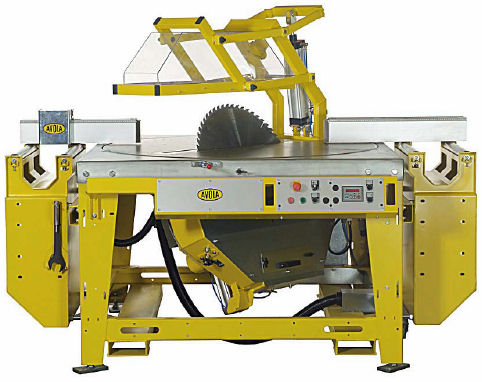

Photo at left shows: short in-feed / out-feed roller tables, aluminum back fences / material stop. Click photo to enlarge.



Above left: Clamping hood. Above right: brush curtain


Above left: Material stop / measuring scale for easy length measuring. Aluminum back fences: Torsionally rigid aluminum profiles 120 x 120 mm are used as a back fence to the roller tables.


Above left: Electrical saw blade inclination 90° - 30°. The laser light for cross-cutting projects a red line onto the material, prior to the saw blade cut.

Above right: Digital readout.

Technical equipment (standard)
Motor 10 kW - direct
Motor speed 3000 rpm
saw blade speed 2200 rpm
Cutting height:
90°
 245 mm / 9.6 in

45°
 164 mm / 6.5 in

30°
113 mm / 4.4 in.
Electrical saw blade inclination 90° - 30° with digital readout
Revolving table 160°
Pneumatic clamping hood automatic
Pneumatic cross-cutting operation
Laser light for cross-cutting
TCT – saw blade 650 mm / 25.6 in.

Clamping cylinder, horizontal

OPTIONS
Roller in-feed table, short version 325 mm with aluminum back fence 500 mm
Roller out-feed table, short version 325 mm with aluminum back fence 500 mm
Clamping cylinders, horizontal, left / right
Brush curtain for pneumatic clamping hood
Digital display for rotating table 160°
Roller table R 600 F, size 600 x 60 mm, in-feed,
Aluminum back fence 120 x 120 mm - in-feed -
Material stop for aluminum back fence
Roller table R 600 F, size 600 x 60 mm, out-feed, per m
Aluminum back fence 120 x 120 mm - out-feed - per m
Material stop for aluminum back fence
Scale for aluminum back fence 5 m, right ascendend
Scale for aluminum back fence 10 m, right ascendend
Scale for aluminum back fence 5 m, left ascendend
Scale for aluminum back fence 10 m, right ascendend
Measuring roller table system, manually operated material stop, measuring datas with digital display, length 6 m, R 600 F MA
Other sizes on request
